Olide-120B No Touch Automatic Swing Door Operator For Handicapped
Olide-120B No Touch Automatic Swing Door Operator For Handicapped
Olide-120B no touch open automatic swing door operator, equipped with wireless wave to open handicapped switch. On the basis of the handicapped switch, contactless technology is added to prevent the disabled from being infected due to repeated contact in public places.
Features for Wireless Handicapped Wave to Open Switch
- Adopts infrared modulation and demodulation, which is not easy to be misjudged by interference.
- Non-contact induction with hands or reflective objects, clean and hygienic.
- The induction distance is adjustable from 3-30cm. It can be adjusted for different occasions.
- High sensitivity infrared, quick response.
- Wireless transmission adopts 2.4g wireless communication technology, with good frequency consistency and high wireless transceiver stablitity.
- Low power consumption sensor panel design, long battery life.
- Receiver large capacity output, can be used with automatic door, and access control.
- After receiving the signal, the door opening signal is output for 1.5 seconds. It is equipped with receving buzzer and LED indicator.
- Receiver wide voltage input design, 12-30V DC power input.
1.LED indicator (Standby red light flashes for 1.5 seconds)
2.Inductive window
3.Screws holes
4.Adjustment screw for the sensing distance
5.Power supply board connection socket
6.Panel connection socket
7.Battery box
8.Panel fixing screw column
9.Control box fixing screw hole
Features for Olide-120B Automatic Swing Door Operator
- Wide voltage design, 100-240V voltage is available;
- Microcomputer controller, more intelligent. Several sets of transistors are added inside the controller, and a set of protection switches can stabilize the voltage;
- Multi-function interface.It can connect with the electronic lock, passive infrared sensor, push button, wifi switch etc... Can meet the different needs of different customers;
- Imported motor from Germany with fast speed and service life of more than 1 million times,it can work stable and with smooth operation;
- Equipped with remote control, can be controlled within 10 meters;
- Suitable for wooden door and aluminum framed door, and doors with frame, max. bearing door weight is 120kg;
- Easily adjust parameters with hand programmer, like closing/opening speed, force, and open direction, etc.
Wiring Diagram
Olide-120B Technical Specifications
Olide-120B Non-Contact Automatic Pet Door Operator with Smart RFID Tags
Olide-120B Non-Contact Automatic Pet Door Operator with Smart RFID Tags
Olide-120B non-contact automatic pet door operator with smart RFID tags both can used by people and pets.
The smart pet collar set uses RFID technology to communicate between your pet's tags and the RFID transmitter to activate your auto enabled door. It offers the highest security in preventing the chance of wild animals such as possums, raccoons, or your neighbors’ pets from activating your auto door system.
One full package including 2pcs smart tags and 1pc RFID receiver, if you have more than 2 pets, you can purchase additional tags. The receiver can be fixed on the wall, wired with the swing door opener, the receiver can receive the signal transmitted by tags and trigger the door to open.
Non-contact Automatic Swing Door For Disabled and Home Security
- People with disabilities are sometimes inconvenient to move, they can carry a tag with them, and the door will automatically open within the sensing range.
- If the door is outside, you are afraid that it will be unsafe if the switch/push button is installed. You can choose smart tags, which only have the "key" for you or your family, so there is no need to worry about a thief entering the door. It's a non-contact way to open the door,too.

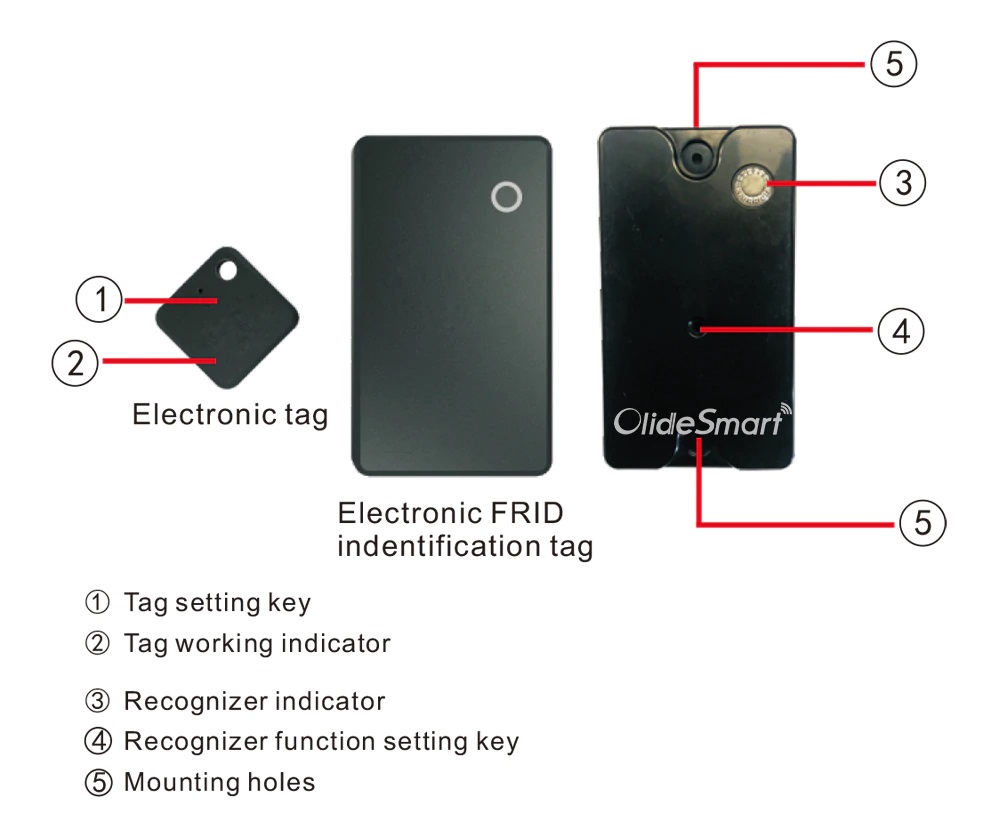

Smart RFID Tags Features
- The tag adopts waterproof design and has a compact appearance.
- Three-gear sensing distance adjustable, more flexible.
- Adopt dual frequency wireless signal control (125KHZ and 2.4GHZ )
- The tag is low-power comsumption design, which makes battery life more durable.
- The identifier adopts a wide voltage AC and DC power supply design, which is flexible in power supply.
Olide-120B Automatic Swing Door Opener Features
- Various parameters can be adjusted through the debugging handle, such as opening and closing speed;
- Multi-function port design, can be connected to switches, electric locks, sensors and other accessories to meet diverse needs;
- The automatic mode and manual mode can be adjusted. If you don't want to push it open by hand, you can increase the opening force; on the contrary, you can open the door manually by reducing the force.
Technical Parameters
Wiring Diagram
Touchless Wave to Open Automatic Door Opener Olide-120B EN16005 Certification
Touchless Wave to Open Automatic Door Opener Olide-120B
The wave to open switch is a contactless active infrared induction smart switch. Its main feature is to realize the switch control of the circuit by waving at a certain distance from the switch panel.
It's an active infrared sensor switch, which is mainly used in Hospitals, laboratories, offices, public washrooms, kitchens, toilets and other areas to achieve simple and convenient door control in contactless mode.
The product can be used for the sensing control of touchless access control at entrance and exit, such operation is convenient, avoiding hand contact pollution.
Wave your hand near the switch , the door will open automatically without pressing.
Features for Wireless Wave to Open Switch M512
- Adopts infrared modulation and demodulation, which is not easy to be misjudged by interference.
- Non - contact induction with hands or reflective objects, clean and hygienic.
- The induction distance is adjustable from 3-30cm. It can be adjusted for different occasions.
Olide-120B Wave to Open Automatic Door Opener Features
1. Reinforced high strength aluminum alloy and imported original parts used;
2. Imported motor from Germany with fast speed and service life of more than 1 million times,it can work stable and with smooth operation;
3. Microcomputer controller, more intelligent -- several sets of transistors are added inside the controller, and a set of protection switches can stabilize the voltage;
4. Universal voltage can widely used --It have made the transformer function directly in the controller, so you can connect AC110V/ AC220V directly to machine;
5. Multi-function interface- It can be connected with the electronic lock, the access control system and etc., and can be connected directly with sensor;
6. The Remote control distance can be more than 10 meters, and flexible adjustment of automatic door (automatic, normally open, normally closed, semi-open);
7. The swing door opener model Olide-120B can bear withstand the door weight of 120kgs(264.55lbs);
8. Can be used for single or double doors, frameless or framed doors;
9. Easily adjust parameters by hand programmer.
Pull and Push Arms Are Optional
Wiring with Wireless Switch M512
