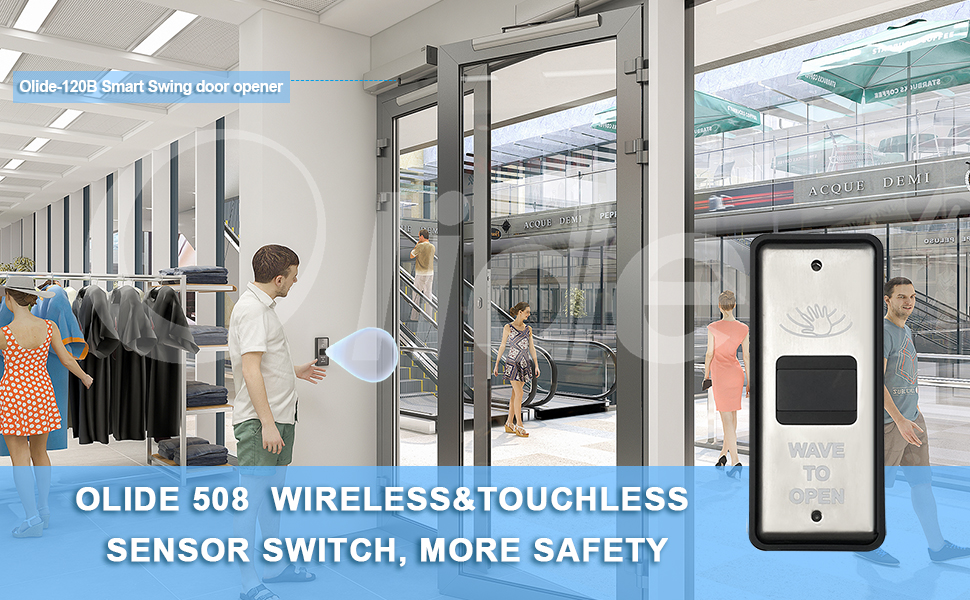

Olide-508 Wireless Slim Touchless Activation Swtiches
- Narrow panel design, more flexible installation;
- Adopts infrared modulation and demodulation, which is not easy to be misjudged by interference;
- Non - contact induction with hands or reflective objects, clean and hygienic;
- The induction distance is adjustable from 3-30cm. It can be adjusted for different occasions;
- High sensitivity infrared , quick response;
- Wireless transmission adopts 2.4g wireless communication technology, with good frequency consistency and high wireless transceiver stability;
- Low power consumption sensor panel design, long battery life;
- Receiver large capacity output, can be used with automatic door, and access control;
- After receiving the signal, the door opening signal is output for 1.5 seconds. It is equipped with LED indicator;
- Receiver wide voltage input design, 12 ~ 30V DC power input.
Technical Specifications
Receiver
| Power supply: | DC12-30V |
| Static current: | 30mA |
| Action current: | 74mA(DC12V power supply) |
| Main contact capacity(wireless receiver): | 1A 24VDC |
Wireless switch
| Power supply: | 3V(2pcs AA batteries) | Static current: | <=80uA |
| Battery life: | 200times/day, can use 250days | Emission current: | 10mA |
| Infrared modulation frequency: | 38KHz | Infrared scanning interval: | 100ms |
| Response time: | <=130ms | Working temperature: | -42°C-45°C |
| Working humidity: | 10-90%RH | ||
| Launch distance: |
More than 30meters in the open area, partition wall or metal shielding environment only 10 meters |
||
| Size: |
121mm(L) x 51mm(W) x 45.5mm(H) (panel) 110mm(L) x 30mm(W) x 15mm(H) (receiver) |
Note: there is slim wired version available
