Automatic Swing Door Opener For Disabled
Automatic door opener equipped with handicap door button, once you push the button,it will sends a brief signal to the wireless receiver connected with the ADA door opener, then the door will open and keep open so that people with disabilities can go in and out of places freely and safely.
PUSH&GO FUNCTION：Manually push force can be adjusted Automatically re-open door if it notices an object in the closing path;
Easily set all of parameters by hand programmer;
Wide voltage technique workable with input voltage AC100V to AC240V;
Interfaces with handicapped push switch,electric strike (lock),wireless push switch,body sensor,access lock,etc.
OLIDE DSW120 ADA AUTOMATIC SWING DOOR OPENER FEATURES
-
WIDELY APPLICABLE
Suitable for office buildings, shop, banks, hospitals, restaurants, factories, hotels, shopping centers, laboratories, etc., to ensure maximum walking and cargo transportation.
-
RELIABILITY
The microcomputer controller uses the top technology, can detect the condition of the door (size, weight), set the optimal operating parameters, keep the door in the best running state, and have the function of memory and correction; high intelligence. With the use of the remote control, it is possible to limit the entry and exit of personnel, and to eliminate the safety of unmanned lock doors.
-
SAFETY
When the door leaf is in the process of closing the door, if an obstacle or an abnormal situation such as the human body is encountered, the door leaf can be immediately reversed and retracted to prevent the occurrence of pinch events or mechanical damage, and ensure the safety of personnel entering and leaving. When the power is off, you can open the door with your hand.
-
ENERGY-SAVING
High-quality design and production ensure unimpeded flow. At the same time, excellent sound insulation, heat insulation and dustproof effect can ensure the building's energy consumption.
-
AESTHETICS
The shape, appearance and function of the door can be adjusted according to your requirements to achieve the best results.
-
CONVENIENCE
Provides interfaces such as sensors, access control, and safety sensor protection, and is equipped with an electric lock and a power output interface. Can choose the wireless remote control to open the door.

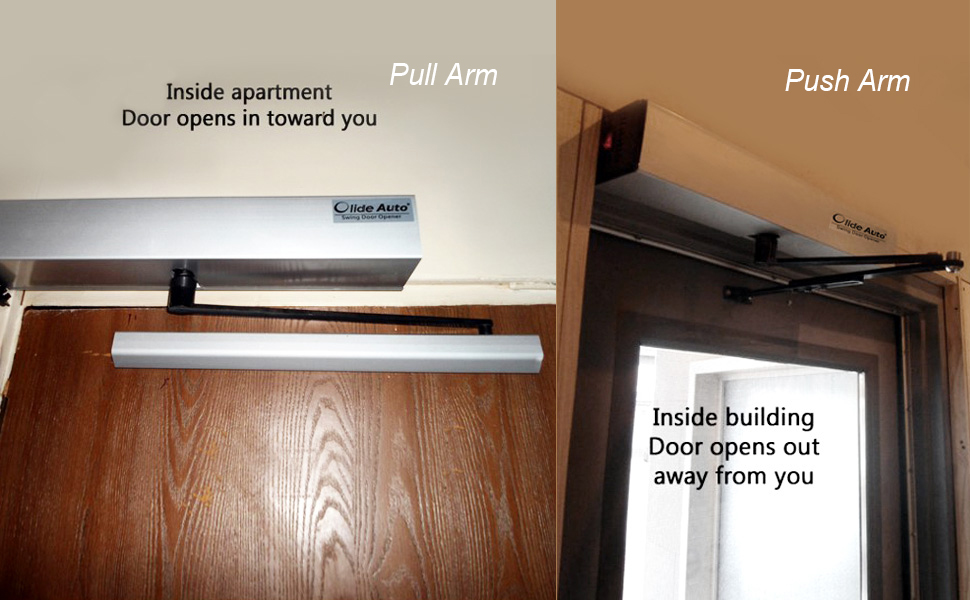

Arms Optional
Technical Specifications
| Operation Noise: | Less than 55db | Voltage: | 110-220 VAC +/-10% |
| Motor: | DC 24V brushless motor | Power Consumption: | 50W |
| Opening Time: | 3-7 sec. @ 90 degrees | Hold Open Time: | 1-30 sec. Adjustable |
| Max. Door Frame Depth: | 450mm / 17.7" | Door Width: | Max. 1200mm / 47.2" Min. 660mm / 26" |
| Max. Opening Angle: | 120 degrees | Environment Temperature: | -20C to 50C -4F to 122F |
| Swing application: | one-way inswing or outswing open, single leaf and double leaf standard doors |
Wiring Diagram
