Olide Hand Sensor Open Residential Automatic Sliding Door Opener

automatic sliding door opener for home use with hand induction sensor

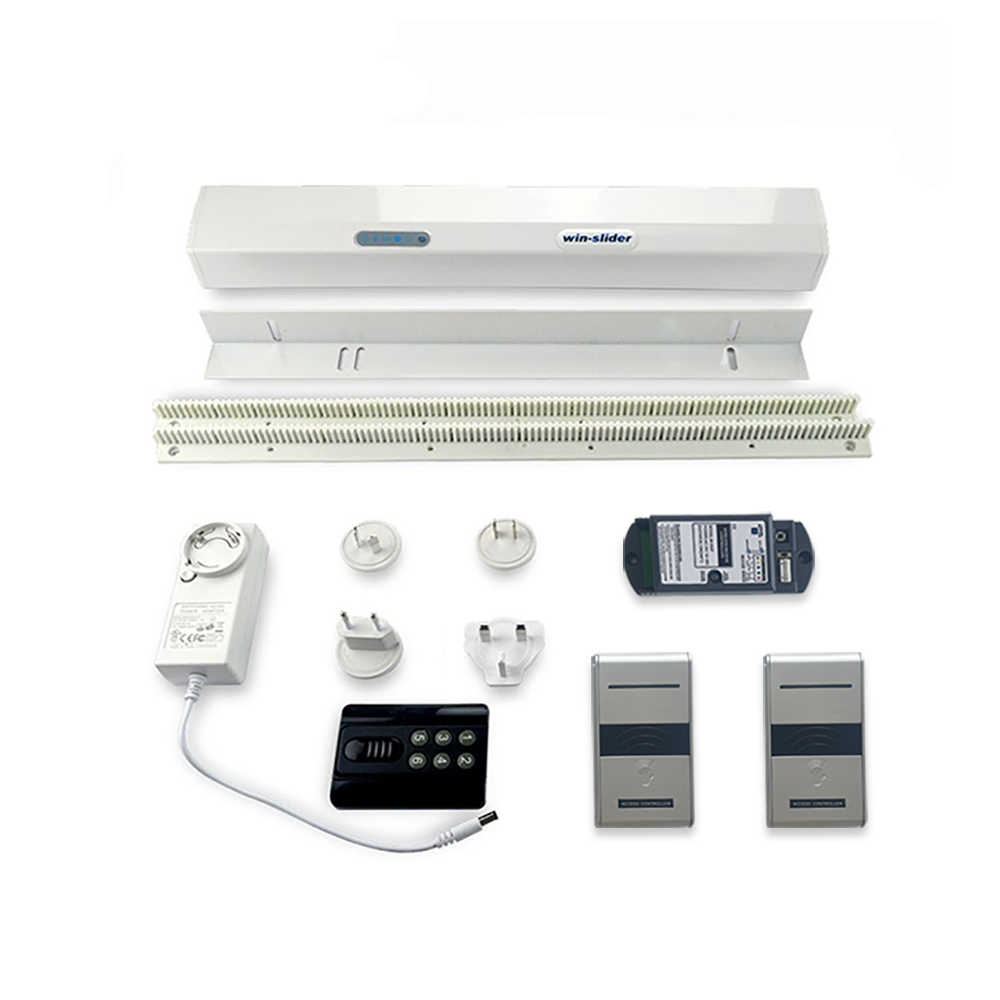

One set electric door opener includes: Auto slider, adapter, install bracket, remote, tooth cap nut, one pair wireless non-touch hand sensor and gear rack.

Features of Wireless Hand Sensor

The product can be used for the sensing control of non-contact access control at entrance and exit, such operation is convenient, avoiding hand contact pollution.

  • The infrared modulation and demodulation sensor will absolutely not generate any interfering or interfered signals.
  • Front non-contact sensing with a hand (or reflectance), clean and sanitary.
  • Adjustable sensing distance between 1cm and 20cm can be set freely adjusted according to different occasions.
  • Imported high sensitivity infrared sensor has timely and convenient sensing ability.
  • Wireless transmitting using RF 315MHZ can realize long and stable transmitting distance.

hand induction sensor sliding door opener Application

hand sensor open residential sliding door opener application

Features of Residential Sliding Door Opener

Window and door modes can be switched arbitrarily.

Equipped with wireless push button and remote control, and can connect with smart switch and sensors, free choice of opening method.

Easy to install, without changing the existing door structure.

Various modes can be adjusted to meet your multiple needs.

residential sliding door opener7

Remote Control Description

remote control instruction

Wiring Diagram

wiring Diagram

Olide European-style D5 Automatic Sliding Door Opener

-1

A whole set of Olide European-style D5 Automatic Sliding

Door Opener Kit includes as below:

-2

Olide European-style D5 Automatic Sliding Door Opener

Kit Details

-3



-4

-5

-6

7-1

7-2

-8

-9

-10

Olide European-style D5 Automatic Sliding Door Opener Kit

Reference Data

There are single type and double type machine.

-11

Olide European-style D5 Automatic Sliding Door Opener Kit

Technical Parameter



-12

factory disply





Thursday, 17 March 2016 07:34

Sliding Window Opener

sliding window opener

You can connect the elecltric sliding window opener with all kinds of sensors so that it can open and close automatically when
it is rainy and gas leak.

sliding window opener

 sliding window opener and accessories

accessories

video on youtube



sliding window opener details
window opener material

  Good quality material

  Exquisite craftsmanship and
  specialized design.
  It has elegant appearance and
  uses good material.

divider

  Humanization design

  You can open and close the window
  manually when it is power failure to
  ensure the safety.

safety design

divider

customized color

    Coulor can be customized

     You can choose while,black,
     brown,champagne and dark
     green and so on.

 sliding window opener technical data
Voltage 24V   220V
Thrust/Pull
200N  200N
The maximun working current
1.5A      0.2A
Travle distance 0-5000mm 0-5000mm
Driving Speed 40-60mm/sec 40-60mm/sec
Working voltage DC24V±%10 DC24V±%10
Ambient Temperature -20~+75℃ -20~+75℃
Protection Grade 32IP 32IP
how too install sliding window opener

 1.Ready for all needed tools,and then mount the window opener on the window frame.

sliding window opener installation 1

2.Close the window

sliding window opener installation 2

3.Fix manual accessories.(The srew shoud be fixed on  the groove  of the slide track)

sliding window opener installaiton 3

4.Access the power supply,and make the window slide to the left in a proper position .Adjust the travel switch, and make the switch touch the sliding wheel,then fix itsliding window opener installation 4

sliding window opener APPlication

 sliding window opener application 1

                       aluminium alloy sliding window                                                                      plastic steel sliding window

sliding window opener application 2

                           Kitchen sliding door                                                                                   patio sliding door
